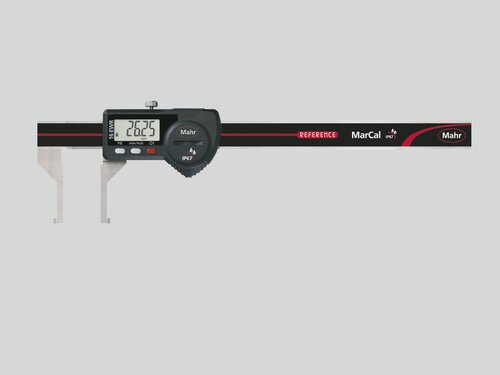

Digital special calipers MarCal 16 EWR-AI
| Product number: | 4103080 |
|---|
Digital special calipers MarCal 16 EWR-AI
Measuring range : 10 - 160 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
Measuring range : 10 - 160 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
Product price
780,00 €
Functions
ON/OFF, AUTO-ON / OFF, mm/inch, LOCK function (key lock), RESET (set display to zero), PRESET (for entering a numerical value), DATA (data transmission via connection cable)
Application
Outward-angled measuring surfaces for measuring recesses in bores
Product features
- High contrast digit display
- Locking screw above
- Lapped guideway
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Scope of delivery
battery, test certificate, instruction manual, case
MarCal 16 EWR-AI | Art. no. 4103080

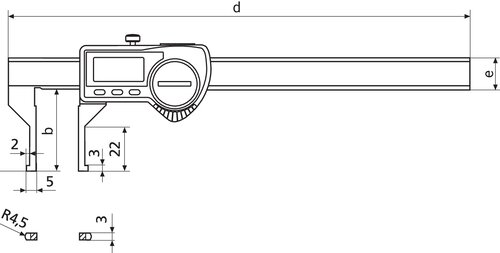

Dimensions
b 40 mm | d 235 mm | e 16 mm |
